MM-CAD: A Multi-Modal CAD Dataset and Benchmark for Cross-Modal Geometric Learning

The conference talk, given at SGP 2026 in Bern. It covers how the two corpora were built, why the captions are grounded in construction history, and what still does not work.

Abstract

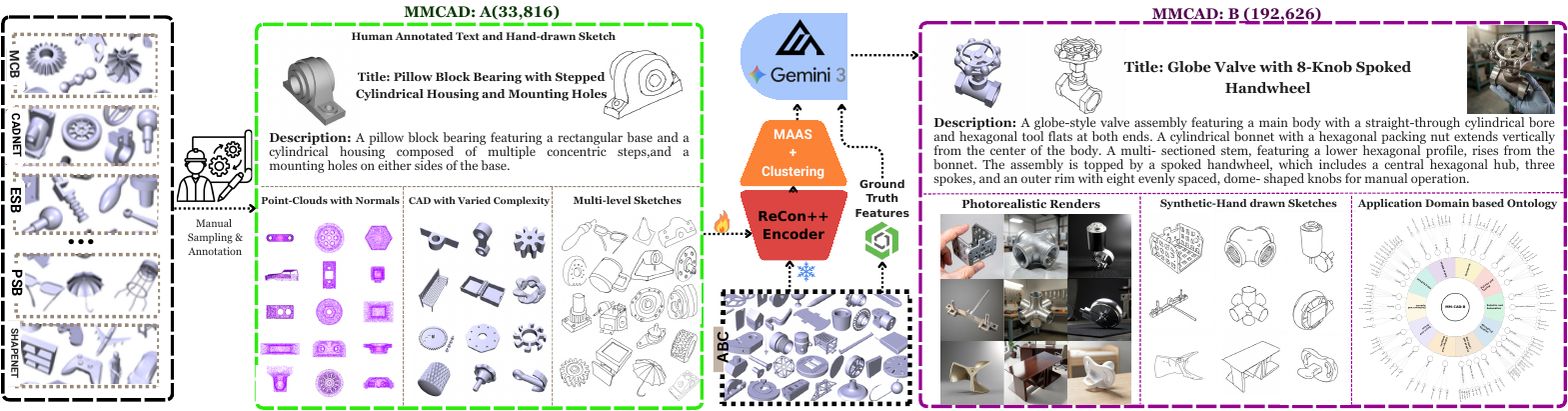

Computer-Aided Design (CAD) boosts modern manufacturing, yet design reuse remains constrained by the absence of large, openly available CAD repositories with rich multi-modal annotations suitable for search/retrieval. Recent large-scale efforts to annotate public datasets rely on hash-based redundancy removal that leaves no semantic structure, and on captioning by Vision-Language Models (VLMs) using rendered images alone, which struggles to capture geometric and procedural information. We introduce MM-CAD, a multi-modal CAD dataset designed to level-up retrieval and retrieval-augmented generation models for engineering geometry, comprising two complementary parts. MM-CAD:A brings 33,816 unique CAD models from eleven widely used benchmark datasets under a common identifier scheme, with isometric renderings, point clouds, and humanly-curated multi-level text captions, and 4,376 real hand-drawn user sketches among others. MM-CAD:B curates 192,626 models from the 1M-model ABC corpus through a seven-stage pipeline centered on Manifold-Aware Adaptive Sampling (MAAS), which organizes models into semantically coherent neighborhoods rather than merely removing duplicates, directly supplying the hard negatives that contrastive retrieval training requires. Every retained model is annotated through a metadata-grounded pipeline that conditions caption generation on parsed construction sequences rather than rendered views alone, producing three-level text descriptions, multi-level contour sketches, a hierarchical application taxonomy, and photorealistic in-context images that largely preserve source CAD geometry, a modality not previously available at this scale on CAD data. We further introduce a joint retrieval architecture that aligns sketch, text, image, B-Rep, and point cloud encoders in a single latent space through Matryoshka-nested contrastive objectives, establishing the first unified cross-modal retrieval benchmark for large-scale CAD.

Five aligned modalities

Every retained model carries the same identifier across geometry and every human-friendly query modality:

Render

Point cloud

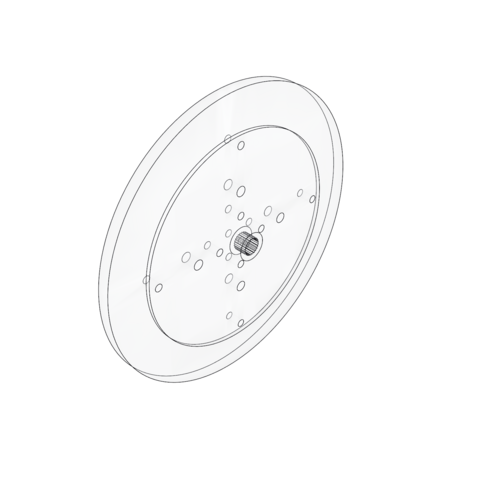

B-Rep

Sketch

Photoreal

Grounded text

How grounded are the captions?

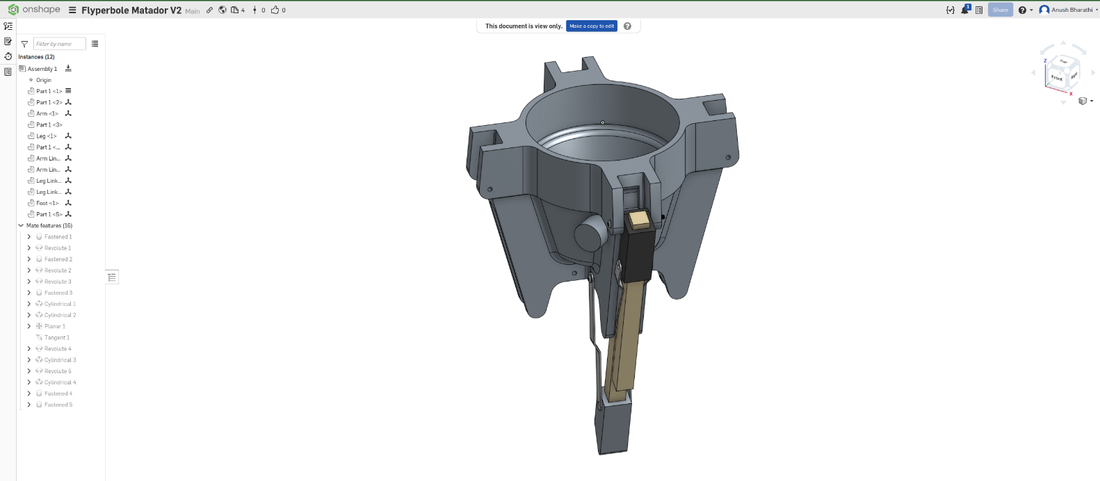

The usual approach shows a VLM a render and asks it to describe the part. MM-CAD:B instead parses each ABC model's FeatureScript construction sequence and conditions the caption on it. The sequence knows what the render cannot show: that a hole is blind rather than through, that a taper is a declared 5° draft rather than a loft, that a circular pattern has exactly 54 instances.

Feature-level grounding, model by model

Each caption phrase below points at a named feature in the construction sequence, not at a guess from the outline:

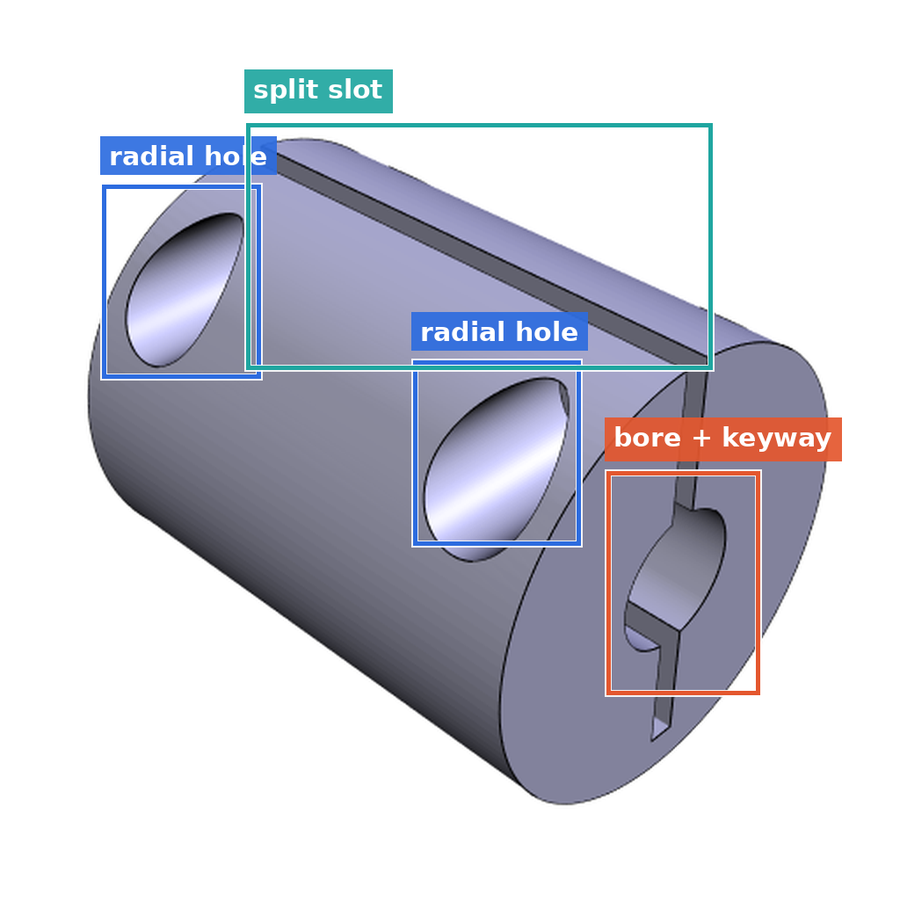

radial hole ×2 · split slot · bore + keyway

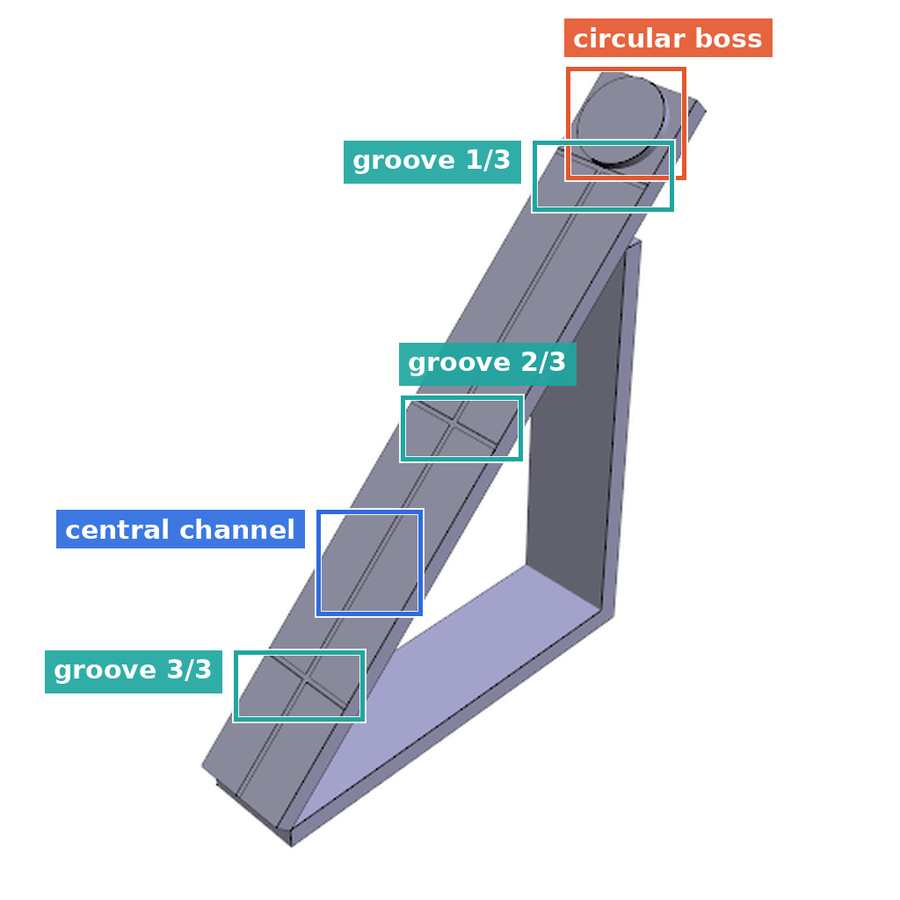

circular boss · grooves 1 to 3 · central channel

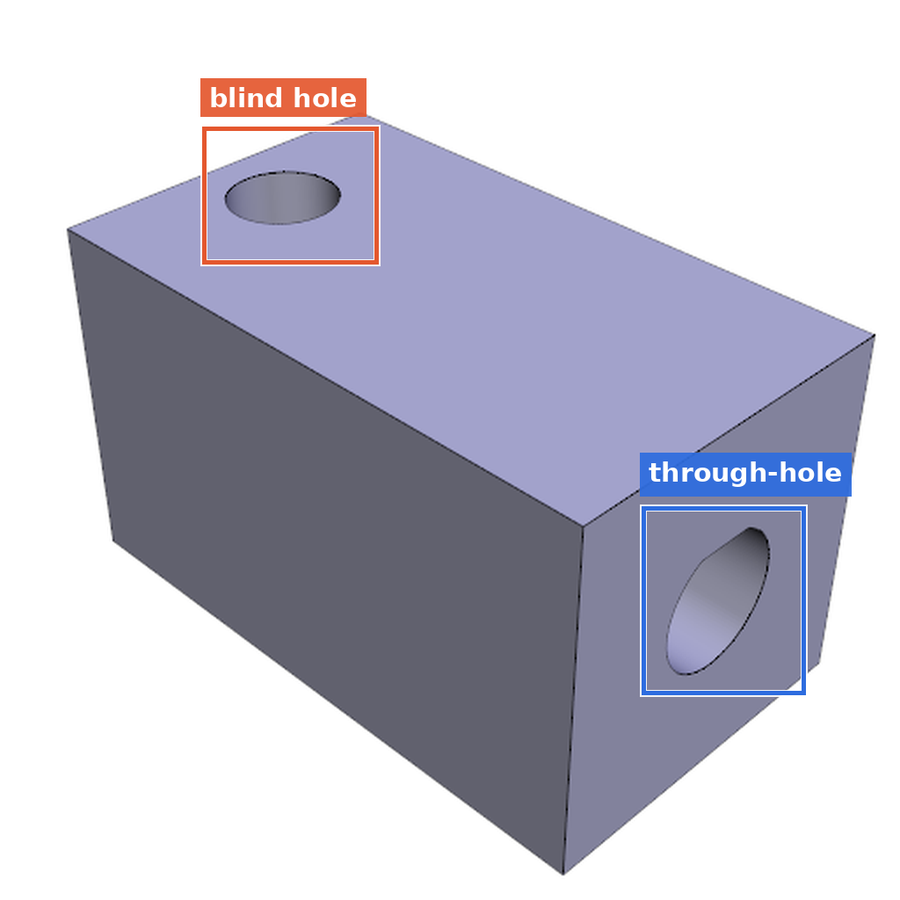

blind hole vs. through-hole, a distinction no render carries

Head-to-head: same model, same VLM, one difference

Three more ablation cases follow the same pattern: uid 83059 calls both holes intersecting through-holes when one is blind; uid 213 invents threads and flips the hole orientation; uid 84167 reports a "2×2 grid of grooves" where the model has one central channel and three transverse grooves. In blind human evaluation the grounded captions were rated Very/Extremely Accurate 85.7% of the time.

Photorealistic images, paired to source geometry

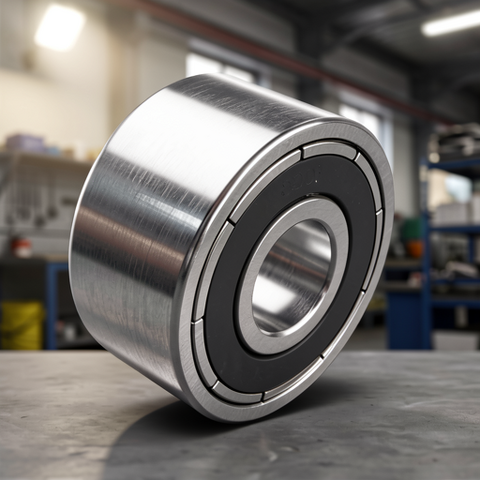

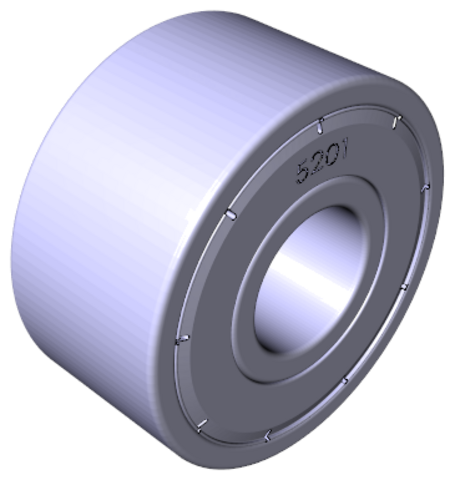

FLUX.2-Klein conditioned on the source render, so the synthesized photograph keeps the part's geometry rather than inventing a plausible-looking object. 129,679 released images; blind human raters scored geometric fidelity 3.64/4 and material realism 3.74/4. Source CAD render on the left, synthesized image on the right:

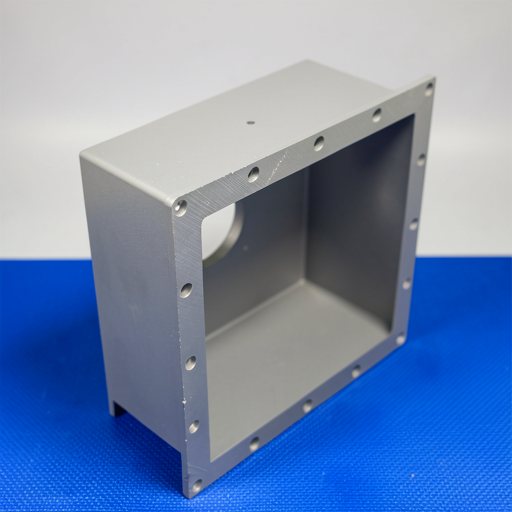

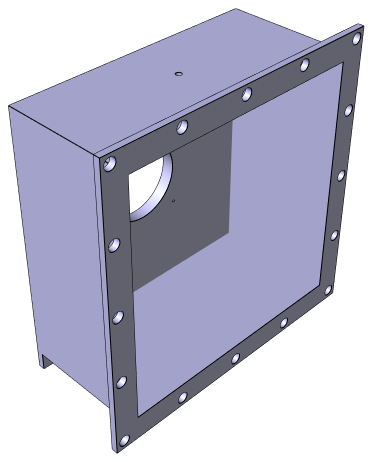

Flanged rectangular chamber, circular front port

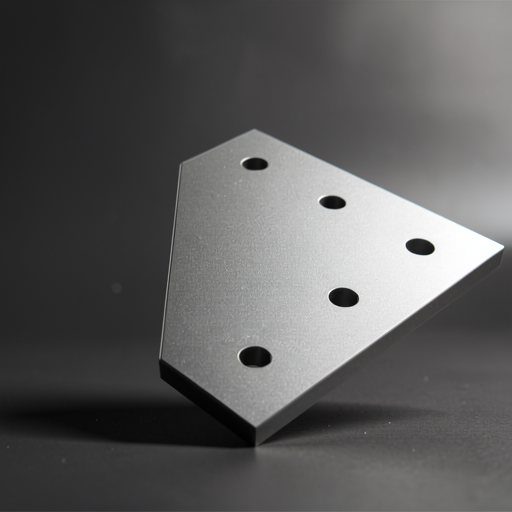

Pentagonal mounting plate, five-hole pattern

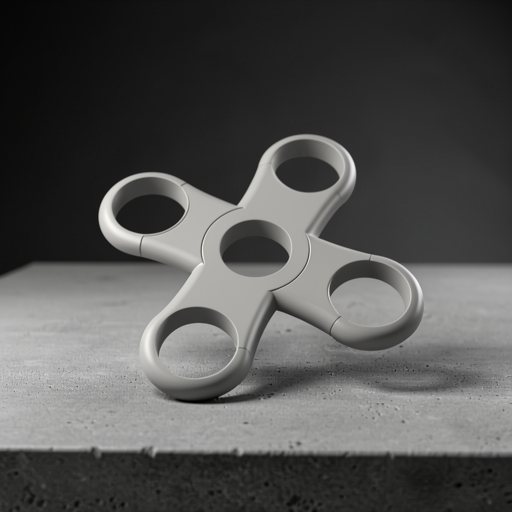

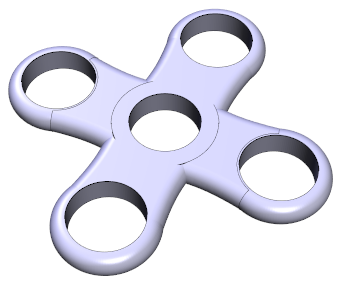

Four-arm plate, central + peripheral through-holes

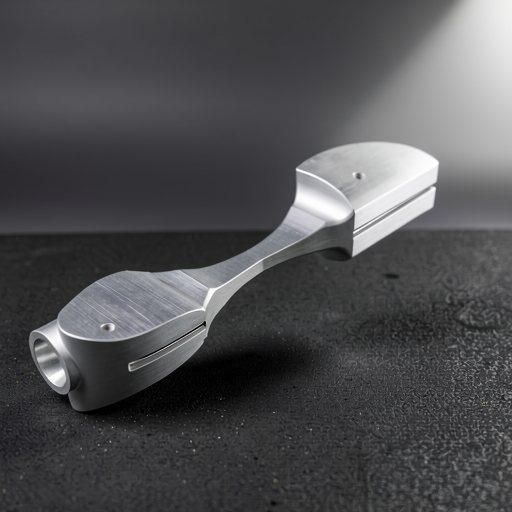

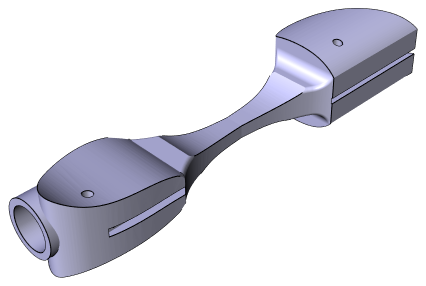

Linkage arm, clevis end + pivot bore

Sketches, style-diverse by construction

A retrieval system fielding sketch queries has to survive whatever a user actually draws. MM-CAD:A contributes 4,069 real human sketches (2,996 look-and-drawn, 1,073 traced); MM-CAD:B carries four synthetic styles per model, so no encoder can overfit to a single line aesthetic. Same part, five renderings:

Source render

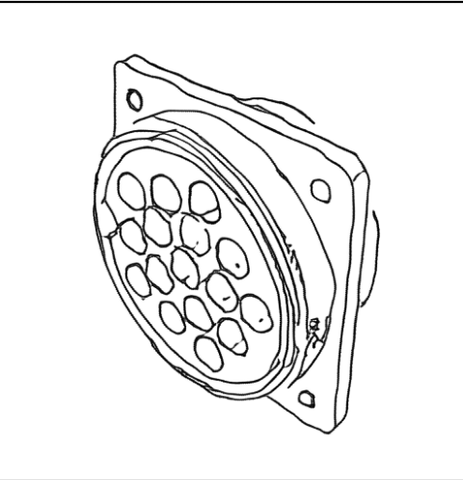

Contour (ours, CGAN)

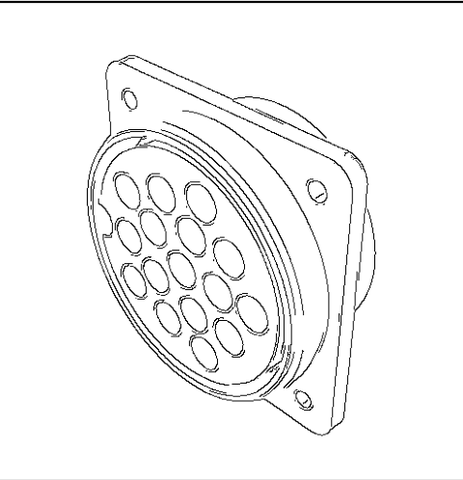

Canny

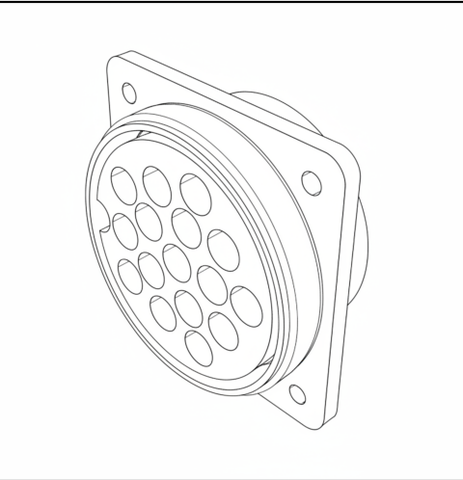

Gemini

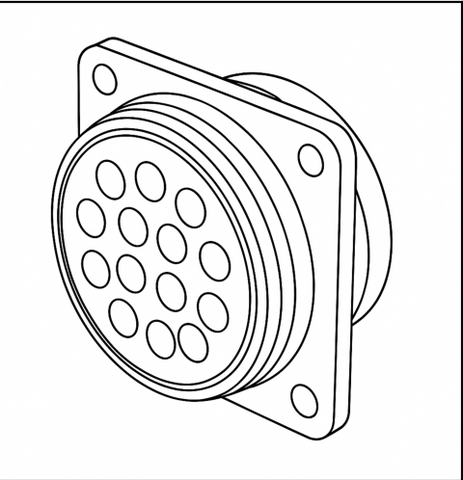

GPT-5

Blind raters scored sketch completeness 3.73/4 and recognizability 3.67/4. The contour network trained on MM-CAD:A transfers to MM-CAD:B with no retraining.

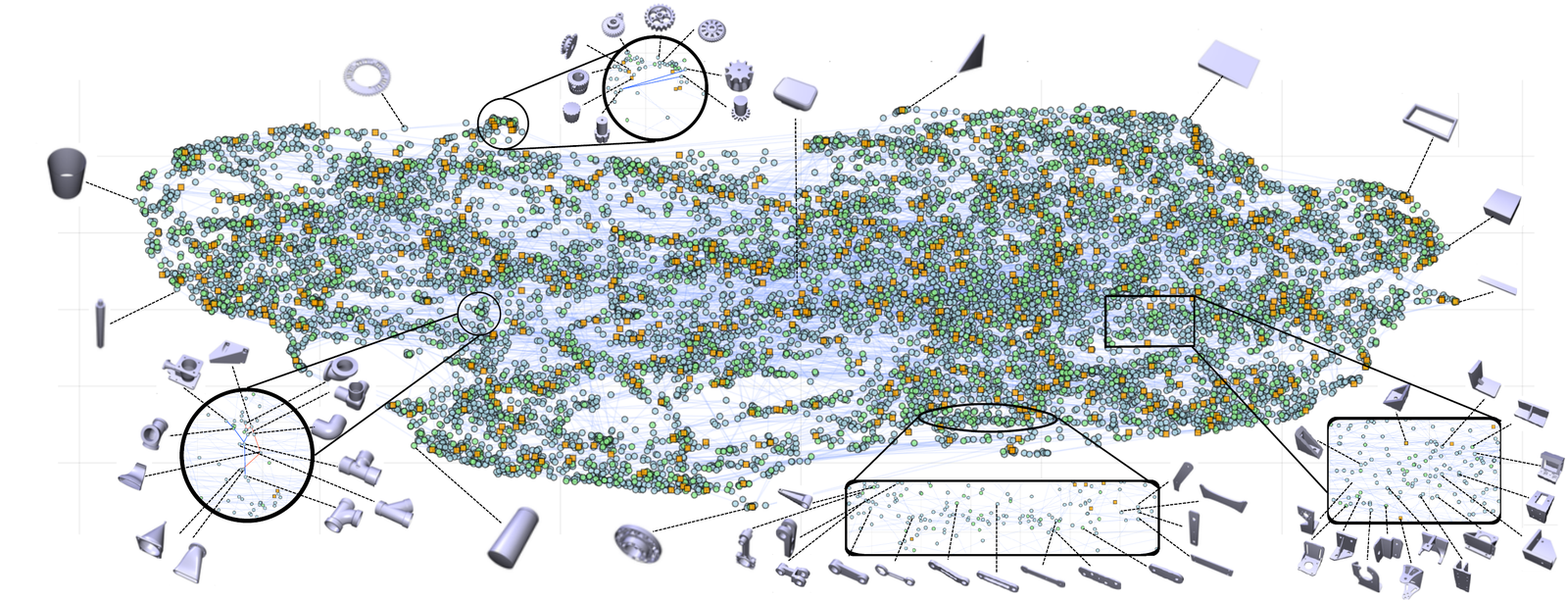

The corpus, as the encoder sees it

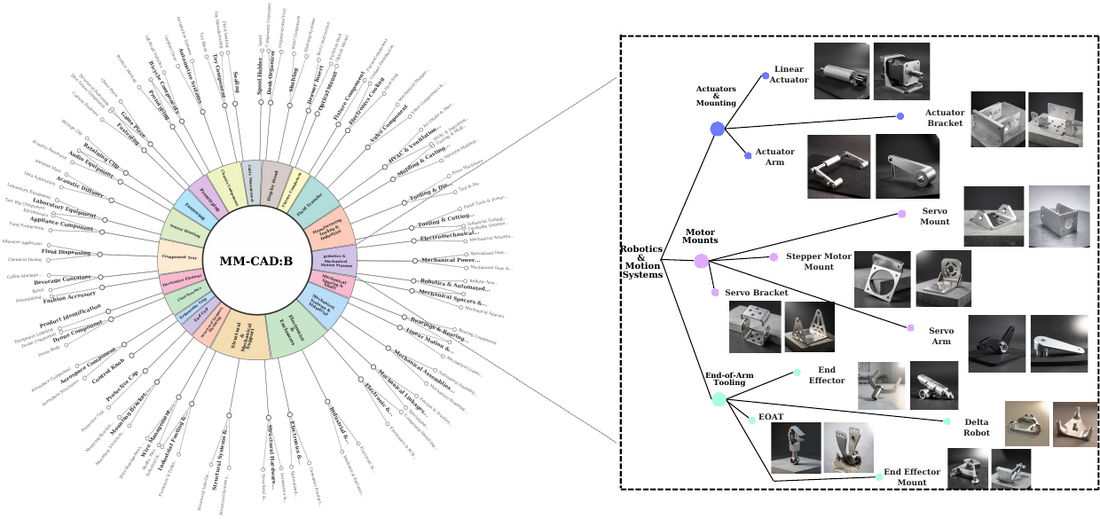

Application taxonomy

The full pipeline (dual semantic and PPMI co-occurrence embeddings, UMAP, recursive Dirichlet-Process mixtures with BIC-validated splits, bottom-up naming) is released in taxonomy/, and the built tree ships with the dataset under mmcad_b/taxonomy/.

Dataset FULLY RELEASED

Everything is on Hugging Face: huggingface.co/datasets/exanos/MMCAD

from datasets import load_dataset

a = load_dataset("exanos/MMCAD", "mmcad_a", split="train")
b = load_dataset("exanos/MMCAD", "mmcad_b", split="train")

Both corpora are keyed by a global uid; every asset is located through its *_archive and *_member columns, and an empty path means that modality is unavailable for that record.

Joint cross-modal retrieval benchmark

Five encoders share one d=768 Matryoshka space over {128, 256, 512, 768}: text (EmbeddingGemma-300M), sketch (ViT-Base), photoreal image (SigLIP-Base), B-Rep (BRepFormer), and point cloud (DGCNN). Query vectors are summed and renormalized, with no learned fusion head. Trimodal queries win every configuration:

Recall on the MM-CAD:B validation set (B-Rep gallery, N=19,263, d=768). Every fusion beats its best constituent. Nothing directly supervises the point-cloud gallery, so its transfer comes out of the shared space on its own. Matryoshka truncation to d=128 moves trimodal R@1 only from 45.91 to 45.50, so a d=128 FAISS index serves interactive queries at negligible cost; released checkpoints expose all four nested dimensions.

Pretrained checkpoints

Three checkpoints are released under checkpoints/: the Stage-1 joint model (text + B-Rep + point cloud), and the two Stage-2 encoders aligned to frozen B-Rep anchors (sketch, photorealistic image). All expose the four nested dimensions.

python inference.py --query "servo mount with four bolt holes" --dim 128
python inference.py --query "bevel gear" --sketch sketch.png --image photo.jpg

Where it still fails

Retrieval matches silhouette, not feature. A query for "herringbone gear · ten lightening holes" returns a water-bottle base at rank 1 because radial perforations look like lightening holes. The correct gear sits at #77. "Symmetrical V-groove pulley" returns a toroidal wheel; the correct part is at #426. Feature terms still do not ground to geometry. We release that gap as a benchmark task instead of hiding it.
